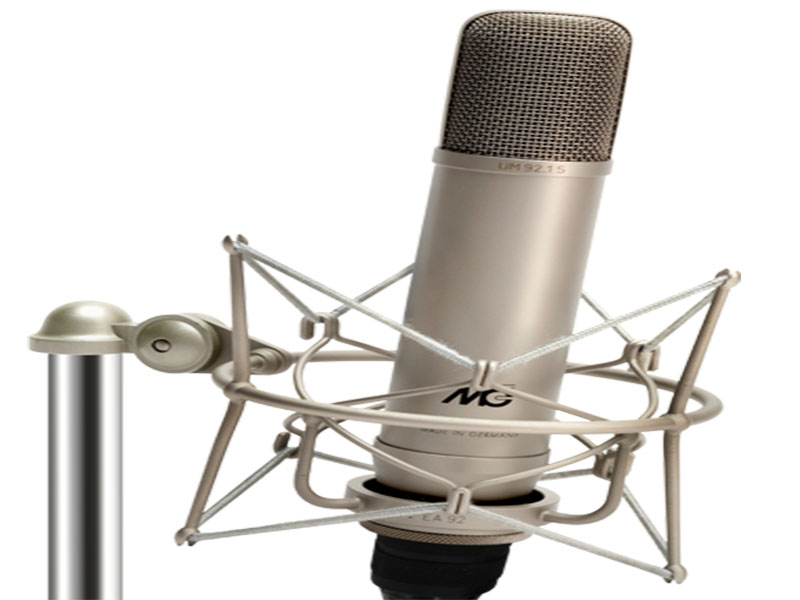

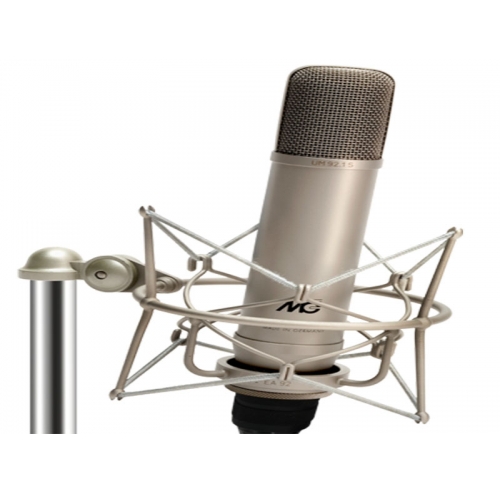

Studio Microphone UM 92.1 S

Technical data

Polar pattern

omni, cardioid, figure of 8

Acoustic operating principle

pressure gradient transducer

Frequency range

20 Hz to 20.000 Hz

Sensitivity at 1 kHz

15 mV/ Pa

Output impedance

200 Ohm

Noise Level

CCIR 468-4

25 dB

DIN EN 60268-4

17 dB-A

Signal-to-noise rate

CCIR weighted

69 dB

A-weighted

77 dB

SPL for THD 0,5 %

120 dB

Dynamic range

103 dB

DC power supply

120 V-

Anode current

1 mA-

Heater voltage

5,8 mV-

Heater current

200 mA-

Tube (low-noise)

EF 86

Output connector

7-polig, Tuchel C 70/A

Weight

430 g

Length

197 mm

Diameter

42 mm
