BLUEBOX BBWR24MP Workstation

브랜드

Joeco

브랜드
Joeco
설명

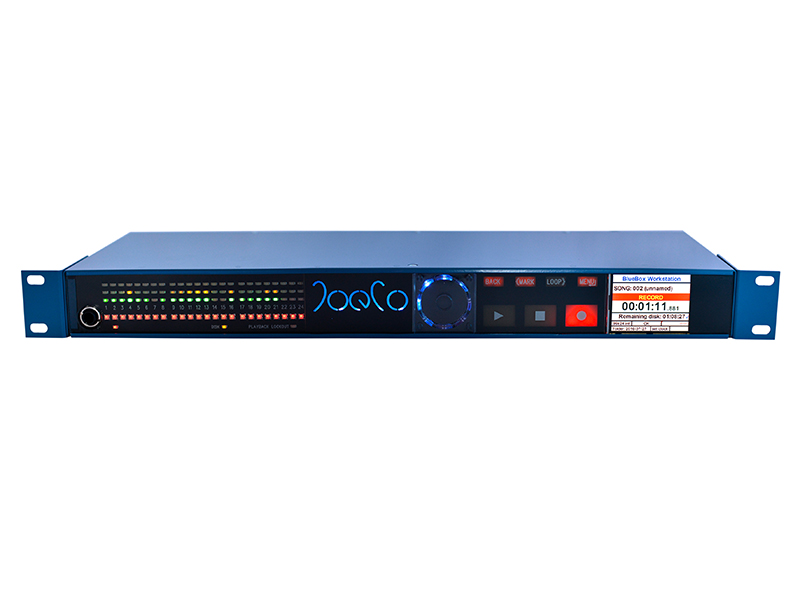

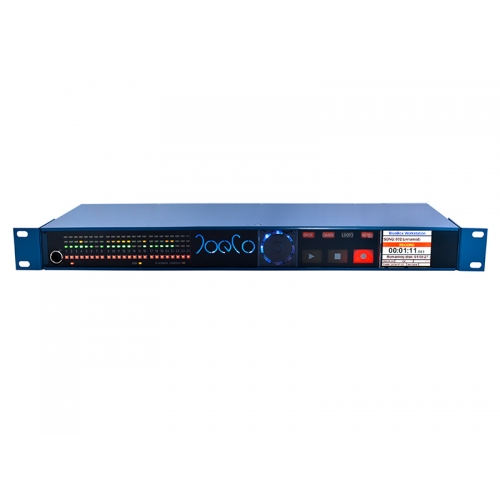

Joeco The BLUEBOX BBWR24MP
Workstation Interface Recorder




수상 경력에 빛나는 JoeCo의 BLACKBOX Recorder 기술을 기반으로 하는 새로운 BLUEBOX Workstation Interface Recorders는 DAW를 위한 다양한 전문 오디오 인터페이스를 제공합니다. 각 BLUEBOX는 전문적인 오디오 인터페이스, 신뢰할 수 있는 멀티 트랙 필드 레코더 및 소스 녹화가 손실되지 않도록 하는 고유한 백업 솔루션입니다. 19인치 랙 장착 1개 유닛에서 3가지 핵심 기능을 모두 제공하는 제품은 블루박스뿐입니다.
Data sheet Download

제품 상세설명











BLUEBOX Multi-Channel Audio Interface









General Specifications

Sample rates:

44.1kHz, 48kHz, 88.2kHz, 96kHz

Bit depth:

16 / 24 bit

Local Disk interface:

USB2 (compatible with USB3)

Local Disk format:

FAT32 compatible with both Mac and PC

Local File format:

Broadcast WAV (BWAV)

External drive:

USB2/3 hard drive or fast memory stick

File type:

Standard mono Broadcast WAV or multi-channel WAV

User interface:

Primarily designed for use with the JoeCoControl app or JoeCoRemote iPad app, the unit can also be configured directly from the front panel



Audio i/o

Workstation Interface:

USB2.0 up to 24 channels of 24bit 96kHz audio in both directions simultaneously

Driver compatibility:

Core Audio and Windows drivers

Latency:

Local foldback mix <10uS; Workstation (depends on spec of computer and plug-ins) typically 6.5mS round trip

Local Record/playback

Up to 24 channels @ up to 96kHz / 24 bit

Inputs

Switchable microphone / line inputs on channel by channel basis

Mic preamps

Gain: 0 +60dB continuously variable;
Soft limiter: software selectable on/off;
Hi-pass filter: -6dB @ 100Hz, 12dB/octave
Max input level: +21dBu
EIN: <-124dBu (20-22kHz)
THD: <-110dBFS (20-22kHz @ -10dBFS input)
Cross talk rejection >80dB @ 20kHz
ZIN: >10kOhm (single ended); >2kOhm (differential)

Outputs

Artist’s stereo headphone output
Engineer’s stereo headphone output
2 stereo artist feeds for feeding external headphone amps

E-E

THD+N E-E: <-90 dBFS (unity gain, 20 22kHz, unweighted)
Frequency response: better than +/- 0.5dB, 20-40kHz @ 96kHz sampling

Monitoring

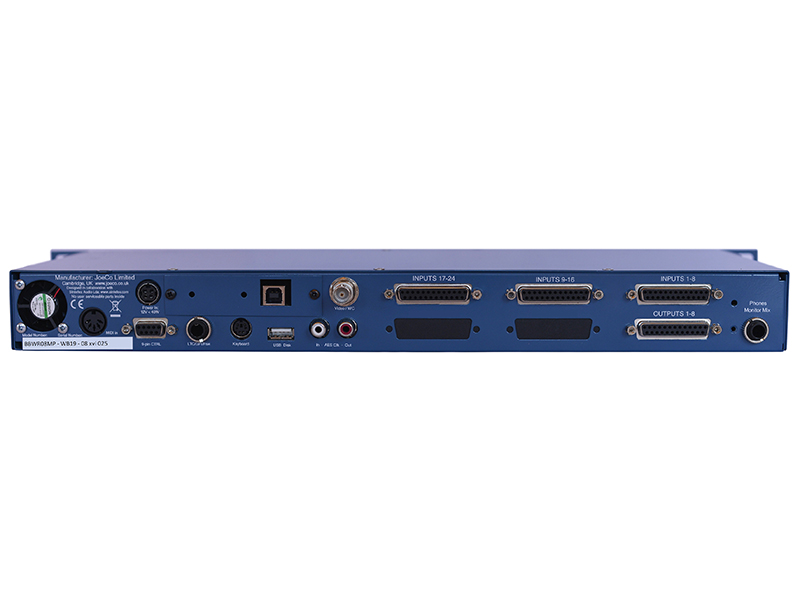

Front-mounted ¼” TRS jack

socket: stereo headphone mix, PFL, solo etc (Engineer);

Rear-mounted ¼” jack socket for stereo headphone mix only (Artist);
24 line level outputs



Control and Synchronisation

Audio clock synchronisation

Word clock, AES/EBU or SPDIF clock, Video reference* and SMPTE linear timecode* (all std frame rates supported)

Control

JoeCoControl interface on workstation; JoecoRemote for iPad (requires JoeCoRemote hardware or JoeCo Bluetooth interface); Sony 9-pin and MIDI (MMC) for transport controls

Physical

19” rack-mounted 1U (435x44x170mm) >3kg
Optional 19” rack-mounted 2U breakout panel (XLR)
(475mm x 88mm x 35mm) 1kg

Power

12V dc (Kycon 4-pole connector), 35W max. External universal PSU included.



BBWR24MP Workstation Audio Interface Recorder

Inputs:

24

Mic Preamps / line ins:

24 individually switchable

Balanced Outputs:

24

Headphone outputs:

2 stereo, 2 assignable output feeds

Video Sync:

Yes

Timecode sync:

Yes
