BLACKBOX Player BBP1U

브랜드

Joeco

브랜드
Joeco
설명

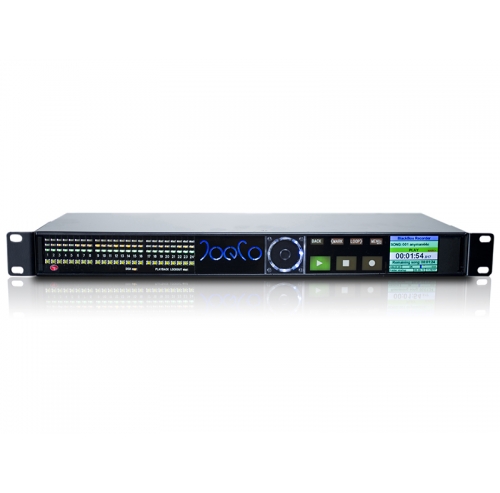

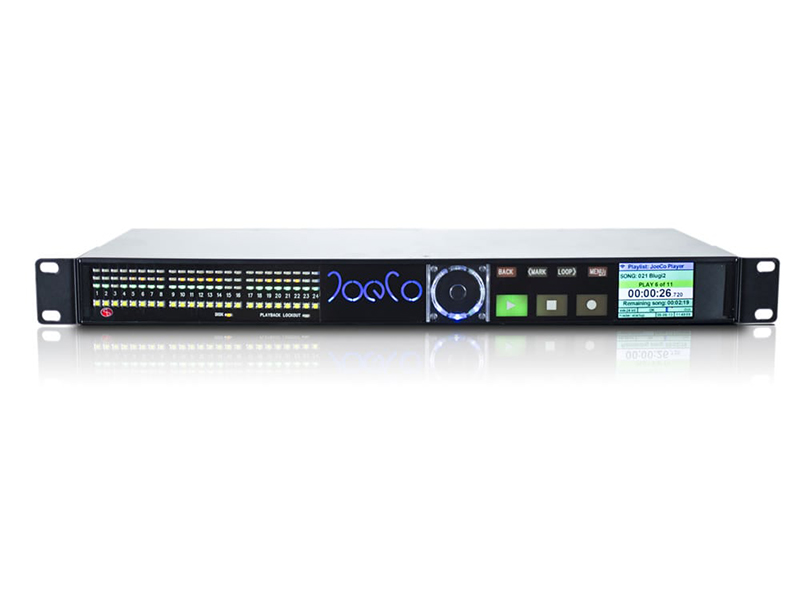

Joeco The BLACKBOX Player BBP1U
(unbalanced analogue I/O)




BLACKBOX Player – 라이브 성능을 위한 혁신적인 백업 트랙 플레이어인 JoeCo는 수상 경력에 빛나는 멀티 트랙 레코더 제품군을 보유하고 있습니다. 동일한 신뢰할 수 있는 기술을 기반으로 하는 BLACKBOX Player는 기존 장치에 대한 소프트웨어 업그레이드로 제공되며, 다양한 형식과 소형 1U 패키지로 고품질의 절대적으로 안정적인 멀티 트랙 재생을 제공합니다. 재생이 실패할 경우 BLACKBOX 플레이어를 사용할 수 있습니다.
Data sheet Download

제품 상세설명

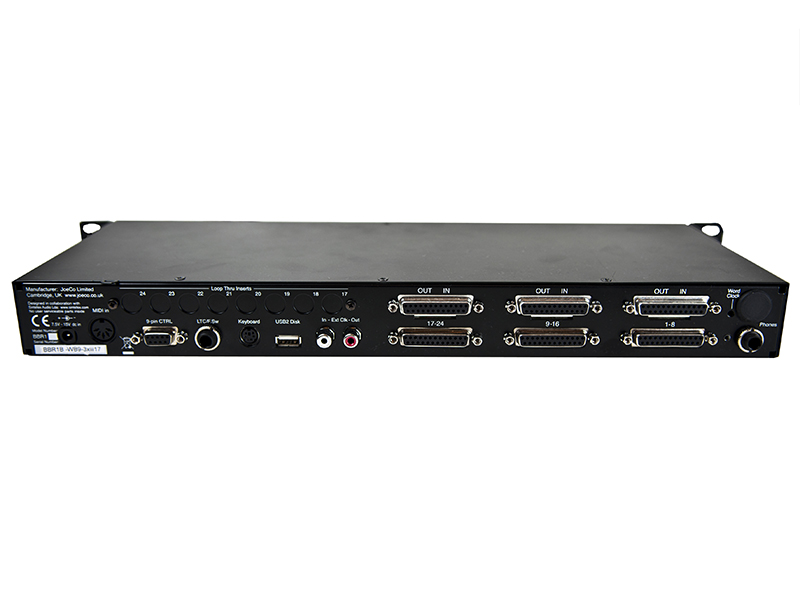

Joeco BBP1A -rear.jpg



BLACKBOX Multi-Track Players









General Specifications

Output

24 mono channels plus internally “mixed” headphone output





Audio connections

Unbalanced Analogue

3 x 25way D-sub TASCAM analogue format
(Hot in, cold out for connection into insert points on console)

Balanced Analogue

3 x 25way D-sub TASCAM analogue format inputs;
3 x 25way D-sub TASCAM analogue format outputs;

AES/EBU:

3 x 25way D-sub YAMAHA digital format

Lightpipe:

3 x TOSLINK*





Storage medium

External USB2 storage device
USB2 drive
Flash RAM drive (thumb drive)
SDHC card via USB2 converter

Audio file format

Standard mono Broadcast WAV files

Audio file naming convention

sss-tt.songname-trackname.wav where:
sss is the song number (001-999)[determines which tracks play together as a Song]
-tt. is the track number (01-24)[determines which output each track is replayed through]
songname is the (optional) song name [free text up to 32 characters]
-trackname is the (optional) track name [free text up to 24 characters]
.wav is the file extension [mandatory]

Playlist format

Simple XML file structure for easy playlist editing

Pre-load time

Typically <3 seconds

Control

Instant replay controlled by:
Timecode (LTC or MTC),
footswitch,
QWERTY keyboard,
MIDI control,
Real-time clock
Automatic pre-load of next song in playlist

MIDI Controls

MIDI open loop connection
MIDI Start, Stop commands
MIDI Song Select: for preloading specific Songs
MIDI Program Change
MIDI Show Control

Audio clocks

Selectable between:
Internal
AES/EBU or SPDIF clock
Word clock (available on BBP1A and BBP1D only)

Timecode

All standard frame rates supported

Auto fail-over

Analogue fail-over automatically switches to synchronous secondary system in case of a replay problem.





Physical

Size: 19” rack mounting x 1U (435 x 44 x 170mm)
Weight: <2.5kg
DC input: 9-12V dc (PSU supplied)
Power: <25W





BBP1U (unbalanced analog I/O)Player

Analogue i/o:
(switchable -10dBu/+4dBu)

Unbalanced

Digital i/o

None

Sample rates

44.1kHz, 48kHz, 88.2kHz, 96kHz

i/o cables

Included
