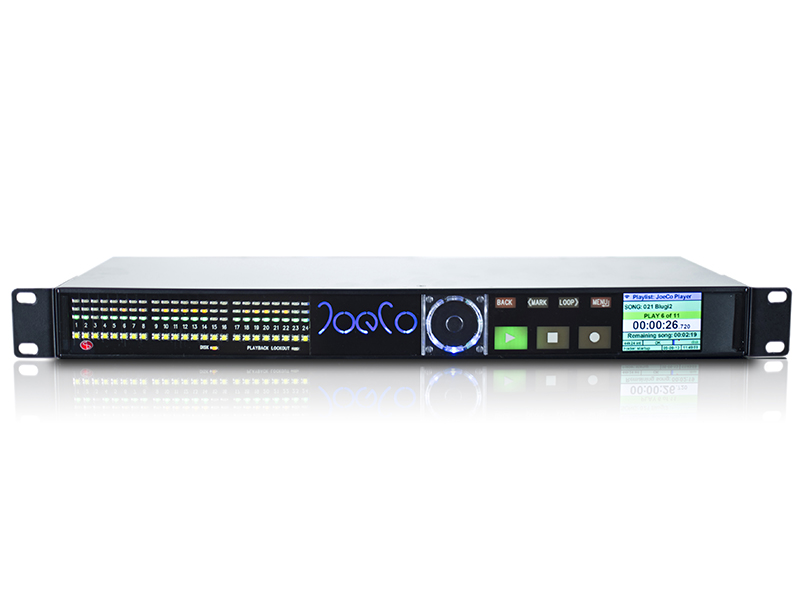

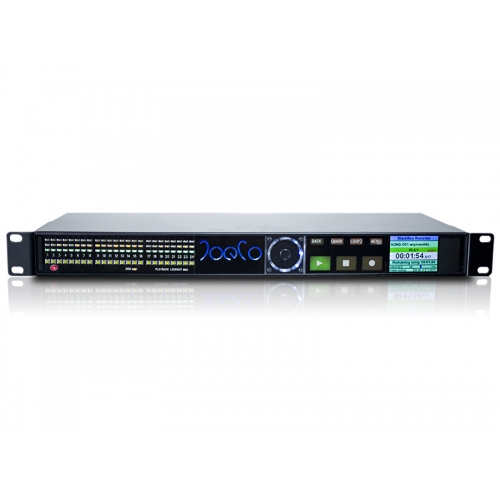

BLACKBOX Multi-Track Players

General Specifications

Output

24 mono channels plus internally “mixed” headphone output

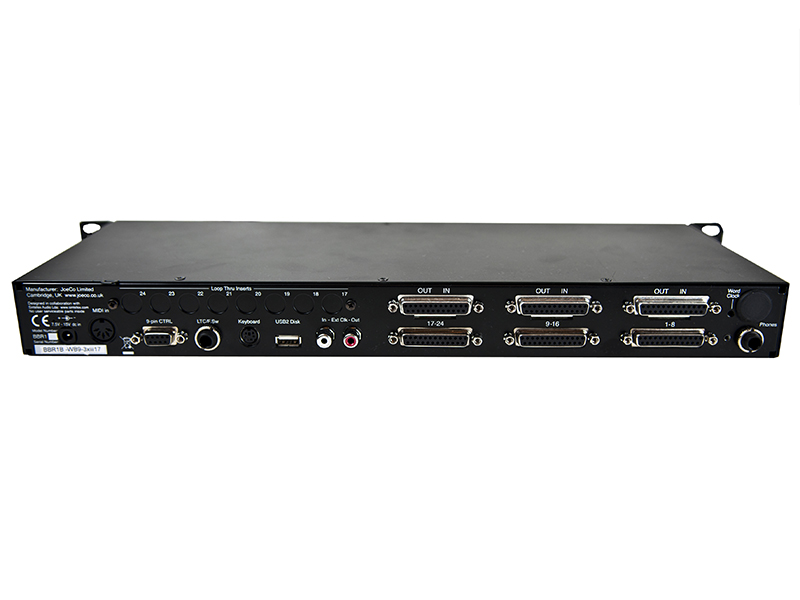

Audio connections

Unbalanced Analogue

3 x 25way D-sub TASCAM analogue format
(Hot in, cold out for connection into insert points on console)

Balanced Analogue

3 x 25way D-sub TASCAM analogue format inputs;
3 x 25way D-sub TASCAM analogue format outputs;

AES/EBU:

3 x 25way D-sub YAMAHA digital format

Lightpipe:

3 x TOSLINK*

Storage medium

External USB2 storage device
• USB2 drive
• Flash RAM drive (thumb drive)
• SDHC card via USB2 converter

Audio file format

Standard mono Broadcast WAV files

Audio file naming convention

sss-tt.songname-trackname.wav where:
sss is the song number (001-999)[determines which tracks play together as a Song]
-tt. is the track number (01-24)[determines which output each track is replayed through]
songname is the (optional) song name [free text up to 32 characters]
-trackname is the (optional) track name [free text up to 24 characters]
.wav is the file extension [mandatory]

Playlist format

Simple XML file structure for easy playlist editing

Pre-load time

Typically <3 seconds

Control

Instant replay controlled by:
• Timecode (LTC or MTC),
• footswitch,
• QWERTY keyboard,
• MIDI control,
• Real-time clock
Automatic pre-load of next song in playlist

MIDI Controls

MIDI open loop connection
MIDI Start, Stop commands
MIDI Song Select: for preloading specific Songs
MIDI Program Change
MIDI Show Control

Audio clocks

Selectable between:
• Internal
• AES/EBU or SPDIF clock
• Word clock (available on BBP1A and BBP1D only)

Timecode

All standard frame rates supported

Auto fail-over

Analogue fail-over automatically switches to synchronous secondary system in case of a replay problem.

Physical

Size: 19” rack mounting x 1U (435 x 44 x 170mm)
Weight: <2.5kg
DC input: 9-12V dc (PSU supplied)
Power: <25W

BBP1B (balanced analog I/O) Player

Analogue i/o:
(switchable -10dBu/+4dBu)

24 channels of Balanced Analogue Inputs and Outputs

Digital i/o

None

Sample rates

44.1kHz, 48kHz, 88.2kHz, 96kHz

i/o cables
