BLACKBOX BBR64 - MADI

브랜드

Joeco

브랜드
Joeco
설명
Joeco The BLACKBOX BBR64 MADI Recorder





MADI 동축(BNC) 안팎. MADI 광학적 접근. 워드클럭 입력 또는 출력(스위칭 가능한 BNC). 25w D-type에서 8x의 균형 조정 아날로그 입력(Tascam 형식)
Data sheet Download

제품 상세설명

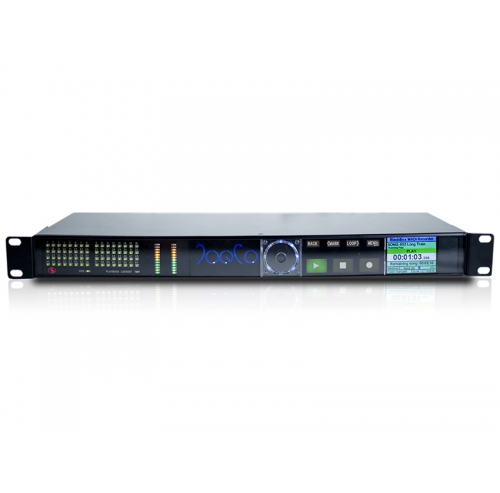

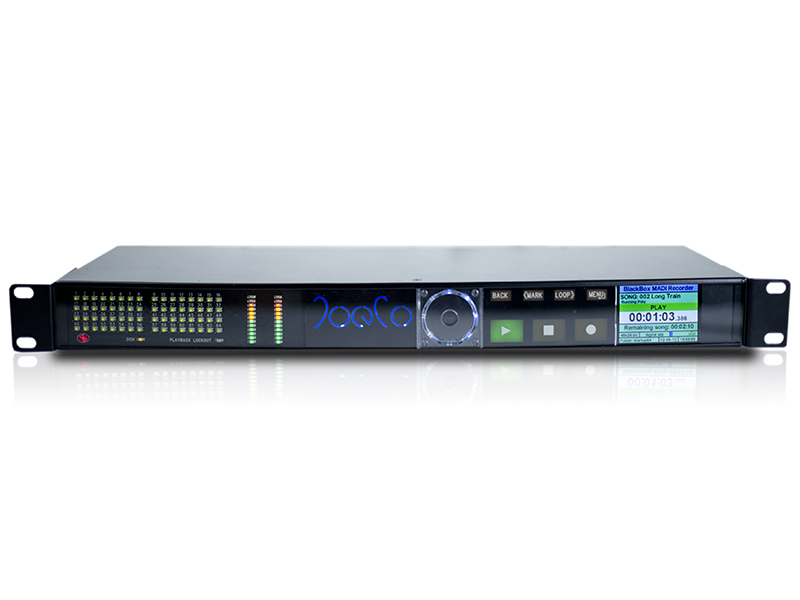

BBR64 MADI.jpg

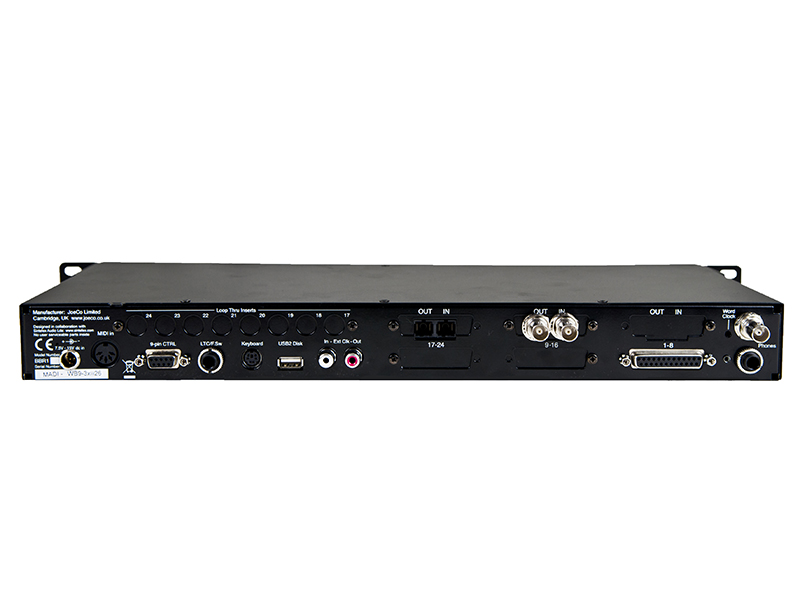

BBR64 MADI 뒤.jpg

BLACKBOX Multi-Track Recorders









General Specifications

Sample rates:

44.1kHz, 48kHz, 88.2kHz, 96kHz

Bit depth:

16 / 24 bit

Local Disk interface:

USB2

Local Disk format:

FAT32

Local File format:

Broadcast WAV (BWAV)

Media

USB2 hard disk (7200rpm recommended), USB2 flash drive 200x minimum (except for MADI and DANTE systems which have more demanding data rates), SHDC (Class 10 with suitable adapter except MADI and DANTE)

Monitoring

 1 x 1/4” TRS jack socket, headphone mix/solo

Physical

19” rack mounted 1U

Dimensions

(425mm x 150mm x 44mm)

Weight

< 2.4kg



Analog Inputs

Levels

-10dBu / +4dBu switchable

Max input level

+22dBu = 0dBFS

A-D conversion

24bit, 96kHz
106dB S/N, 96dB THD+N (typical A-weighted)



Analog Outputs

Levels

-10dBu / +4dBu switchable

Max input level

+22dBu = 0dBFS

D-A conversion

24bit, 96kHz
106dB S/N, 94dB THD+N (typical A-weighted)



Control and Synchronisation

MIDI

1 x 5-pin DIN (open loop) MIDI time code (MTC) and MIDI machine control (MMC) protocol

LTC

1 x 1/4” TRS jack socket:
Frame rates supported: 30fps, 29.97drop fps, 29.97non-drop fps, 25fps, 24fps, 23.98fps

Machine control

1 x 9-pin D, SONY PII protocol

Audio clock synchronisation

2 x RCA sockets AES3 / SPDIF Format, also used for communications to slave units

Footswitch

momentary switch on ring of LTC TRS socket

Keyboard

1 x mini DIN PS2 connector, Standard 102 key

Power

9v 16V dc (< 25W). 2.1mm dc inlet. PSU supplied





BBR64 Recorder MADI Multi-Track Recorder

MADI coax (BNC) in and out.

MADI optical in and out.

Wordclock in or out (switchable BNC).

8 x balanced analogue inputs on 25w D-type (Tascam format)

No loop through outputs. Power: 20W on 4pin mini XLR universal PSU supplied.

Other connectors as BBR1U
